Fire Doors FD30, FD60 & FD120 — Steel and Timber Fire-Rated Doorsets

Fire doors built around fire materials Wedge makes itself. Wedge supplies FD30, FD60 and FD120 doorsets for staircases, lift lobbies, shafts, plant rooms, hospital corridors and hotel rooms — steel or timber, single or double leaf, with or without vision panels.

Components only? See fire door cores, boards and seals.

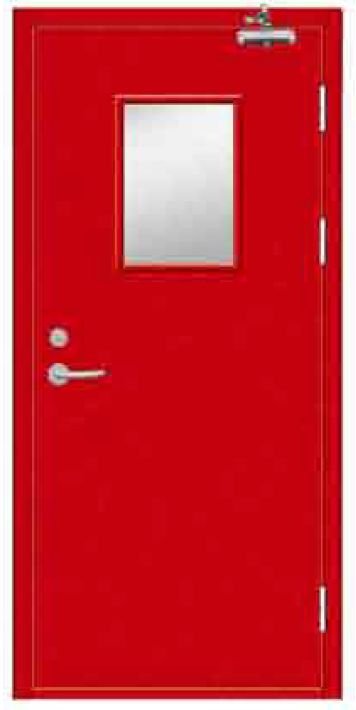

Wedge fire doors: FD60 steel fire door with vision panel
FD30–FD12030 to 120 minutes integrity and insulation
1,200 × 2,400 mmlargest single leaf; doubles 2 × 900 mm
9 componentsWedge-certified cores, boards and seals
10 doorsminimum project order; samples available

What is a fire door?

A fire door is a complete doorset — leaf, frame, core, intumescent seals, glazing and hardware — tested together to hold back fire and heat for 30, 60 or 120 minutes. Wedge fire doors use StarPan / FP1000 / FP1150 calcium silicate boards, WEMAG-C MgO board, HDRW 850 rockwool cores and INTUF / INTUR graphite intumescent seals, all made by Wedge Industries Limited.

Fire door ratings and sizes

RatingWhere NBCS 2026 requires itLeafSizes
FD30 (30 min)Flat entrance doors, corridor doors, service rooms44 mm timber or 46 mm steel, HDRW 850 or FD30 board coreUp to 1,200 × 2,400 mm

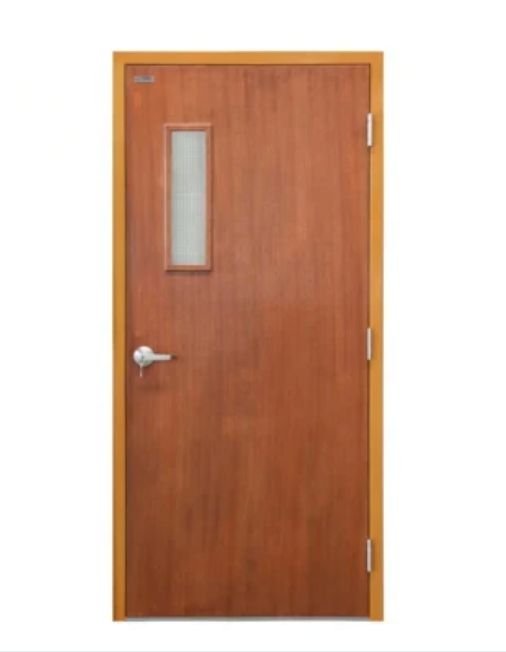

FD60 (60 min)Staircases, lift lobbies, refuge areas, hospital wards54 mm timber or 50 mm steel, calcium silicate faced coreSingle 1,200 × 2,400; double 2 × 900 × 2,400 mm
FD120 (120 min)Exit stairs, basements, plant rooms, electrical rooms56–60 mm, double-board core, MgO or calcium silicateSingle 1,200 × 2,400; double 2 × 900 × 2,400 mm
Acoustic FD60Hotel rooms, hospitals, auditoriumsFD60 leaf with acoustic seals and drop-down bottom sealOn request

What is in a Wedge fire door

ComponentWedge materialFunction
Core / facing boardStarPan, FP1000, FP1150 calcium silicate; WEMAG-C MgO boardInsulation and integrity for 30–120 minutes
InfillHDRW 850 high-density rockwoolInsulation, acoustic mass
Perimeter sealINTUF graphite intumescent strip (10 × 4 mm / 15 × 4 mm), INTUR smoke sealExpands at about 200 °C to close the gap; blocks cold smoke
GlazingCeramic glazing tape with fire-rated glassVision panels up to the tested size
HardwareBall-bearing hinges, closer, panic bar, fire-rated lockSelf-closing and latching

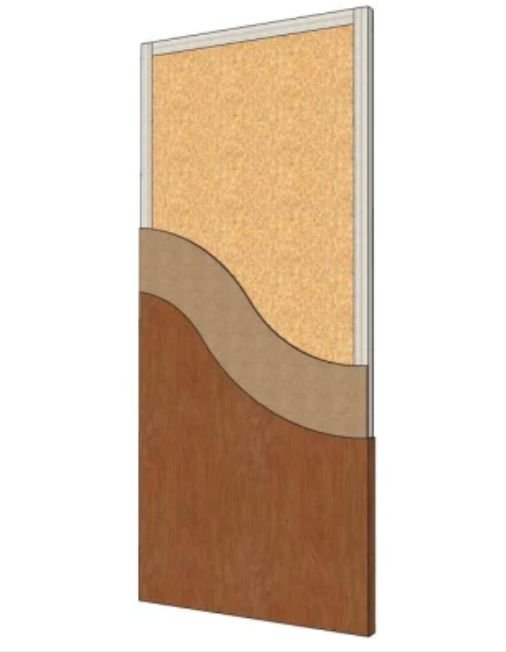

Cutaway of a Wedge fire door core construction

Certification: what we claim and what we do not

Wedge cores, boards and intumescent seals are tested and certified, and their certificates are supplied with every order. Doorsets are made to Wedge drawings by partner factories. For every fire-rated door we quote, we name the doorset test report that covers it before you order. Wedge’s own FD60 and FD120 doorset tests to IS 3614 and BS 476-22 are being arranged with accredited Indian laboratories; Wedge doorset reports will be published here when issued.

NBCS 2026 fire door checklist

  • Certified doorset from one accountable manufacturer, not a site-assembled door
  • Minimum 30-minute insulation on rated doors
  • Intumescent seals on all exit doors
  • Self-closing device on every fire door; hold-open only with a fire-alarm-linked release
  • Door label with rating, manufacturer and batch number
  • Test report covering the size, configuration and hardware installed

Sizes and leaf thickness by rating: fire door sizes and thickness guide. Full passive fire checklist: NBCS 2026 passive fire protection checklist.

Who buys fire doors from Wedge

Hospitals

Ward, corridor and stair doors; acoustic FD60 for theatres and consult rooms.

Hotels

Timber-faced FD30/FD60 room and corridor doors with acoustic seals.

High-rise residential

Stair-core, lift-lobby and flat entrance fire doors, one drawing set per tower.

Industry and data centres

FD120 steel doors for plant, electrical, battery and server rooms.

Installation

Fire doors are only as good as the gap around them. Frames are fixed to a fire-rated wall, the gap is packed with rockwool and sealed, the perimeter gap is held at 3 mm ± 1 mm so the INTUF strip can work, and the closer is adjusted to latch from 100 mm. Wedge supplies an installation guide with every doorset and installs in Delhi NCR, Noida and Lucknow.

Fire door price

Fire door prices depend on rating, size, leaf material, glazing and hardware, so we do not publish a list price. Send your door schedule and we quote within two working days, ex-works, with the applicable test report named against each door.

Why buyers choose Wedge Doors

Materials we make ourselves

Wedge manufactures the calcium silicate boards, HDRW 850 rockwool cores and INTUF / INTUR intumescent seals that go inside its fire-rated doors, at its Faridabad plant. Each order ships with material test certificates.

Spec-first quotations

Send a door schedule or drawings. You get a quote that lists leaf, frame, core, seals, hardware, finish and — for fire doors — the exact test report that covers the door. No list prices; every door is quoted to its opening.

Pan-India delivery, export ready

Site measurement and installation in Delhi NCR, Noida and Lucknow; delivery across India; exports to the UAE, Saudi Arabia, Qatar, Kuwait, Nepal and East Africa, with documents handled by group company ZJELL Limited.

Fire door FAQs

Is a fire-rated door mandatory in India?

Yes for the locations NBC 2016 Part 4 and NBCS 2026 define: staircases, lift lobbies, shafts, refuge areas, plant rooms and, in many states, flat entrance doors in high-rise buildings. State fire services check certificates at NOC stage.

What is the difference between FD60 and FD120?

FD60 holds fire for 60 minutes and FD120 for 120 minutes in a standard furnace test. FD120 uses a thicker, double-board core and is used on exit stairs and basements.

Are Wedge fire doors tested?

Wedge cores and seals are tested and certified. For each fire door we quote, we name the doorset test report that covers it; Wedge-branded FD60/FD120 doorset tests are being arranged.

Do you make wooden fire doors?

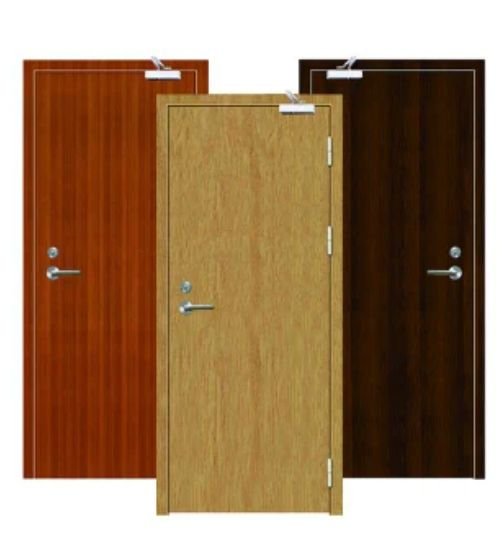

Yes. Timber-faced FD30, FD60 and FD120 doors with calcium silicate or rockwool cores for hotels, hospitals and offices where the door must look like wood.

Can I buy only the fire door core and seals?

Yes. Wedge supplies boards, cores, INTUF seals and ceramic glazing tape to door manufacturers across India — see fire door components.

What is the price of a fire door in India?

It depends on rating, size, leaf material and hardware. Send your door schedule for a quotation within two working days.

Other doors from Wedge

Send your fire door schedule

Ratings, sizes, quantities and site location — we return a priced offer with the test report named for each door, within two working days.

Wedge Doors is the door division of Wedge Industries Limited, the Faridabad manufacturer of fire-resistant boards, rockwool cores and intumescent seals. Insulation and fire protection materials: wedgeinsulation.com · Fire door cores and seals: fire door components.
